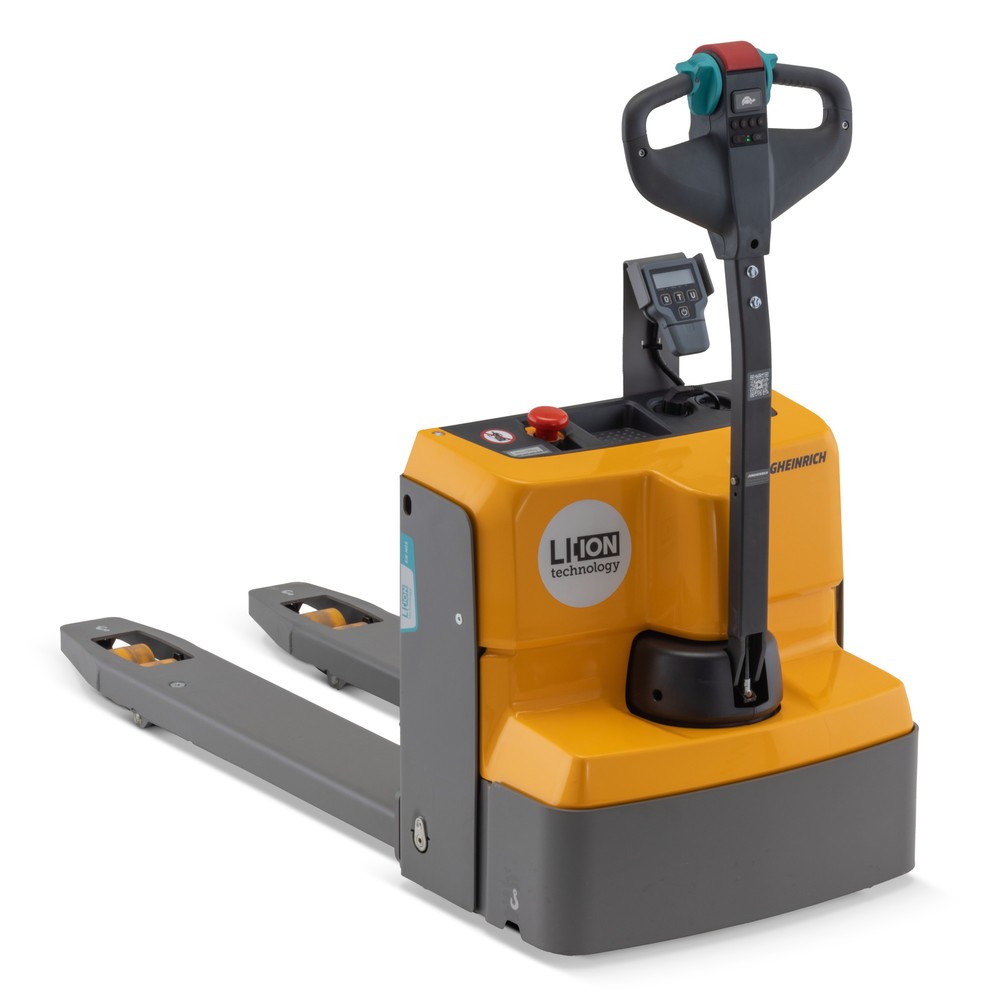

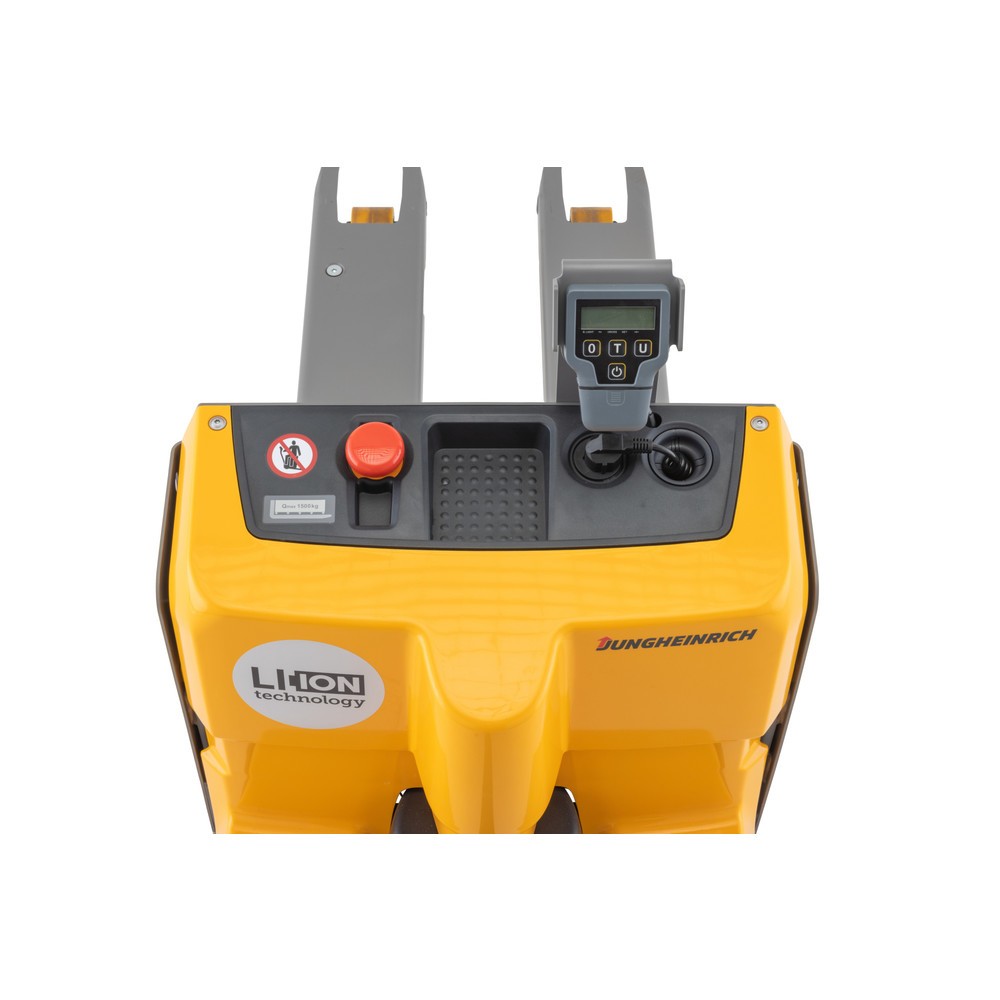

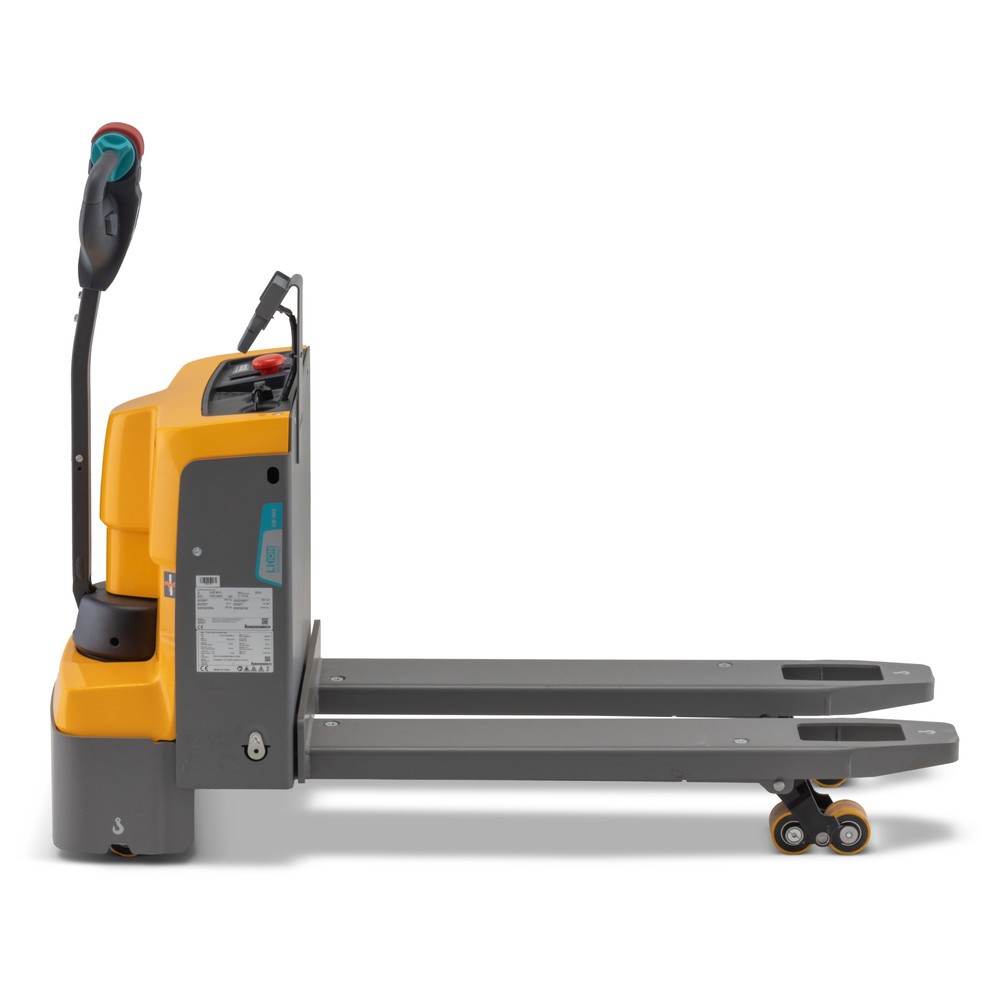

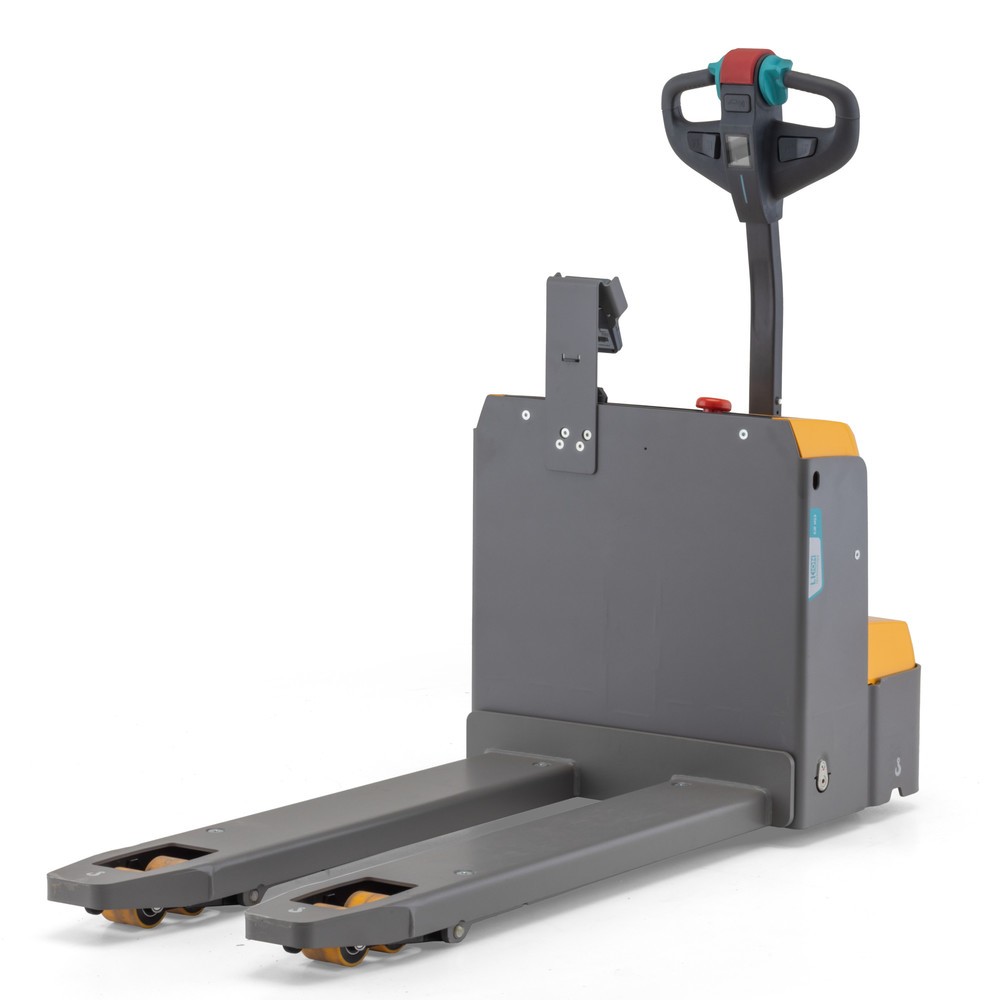

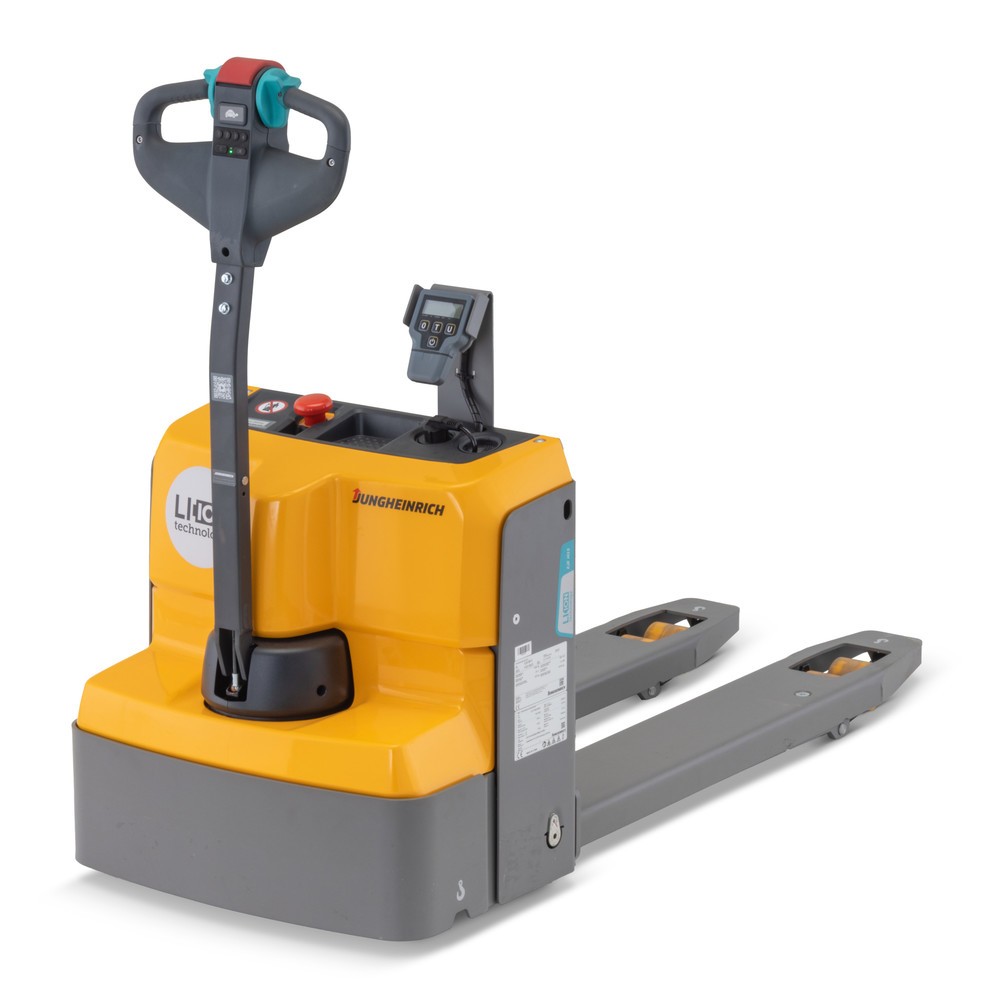

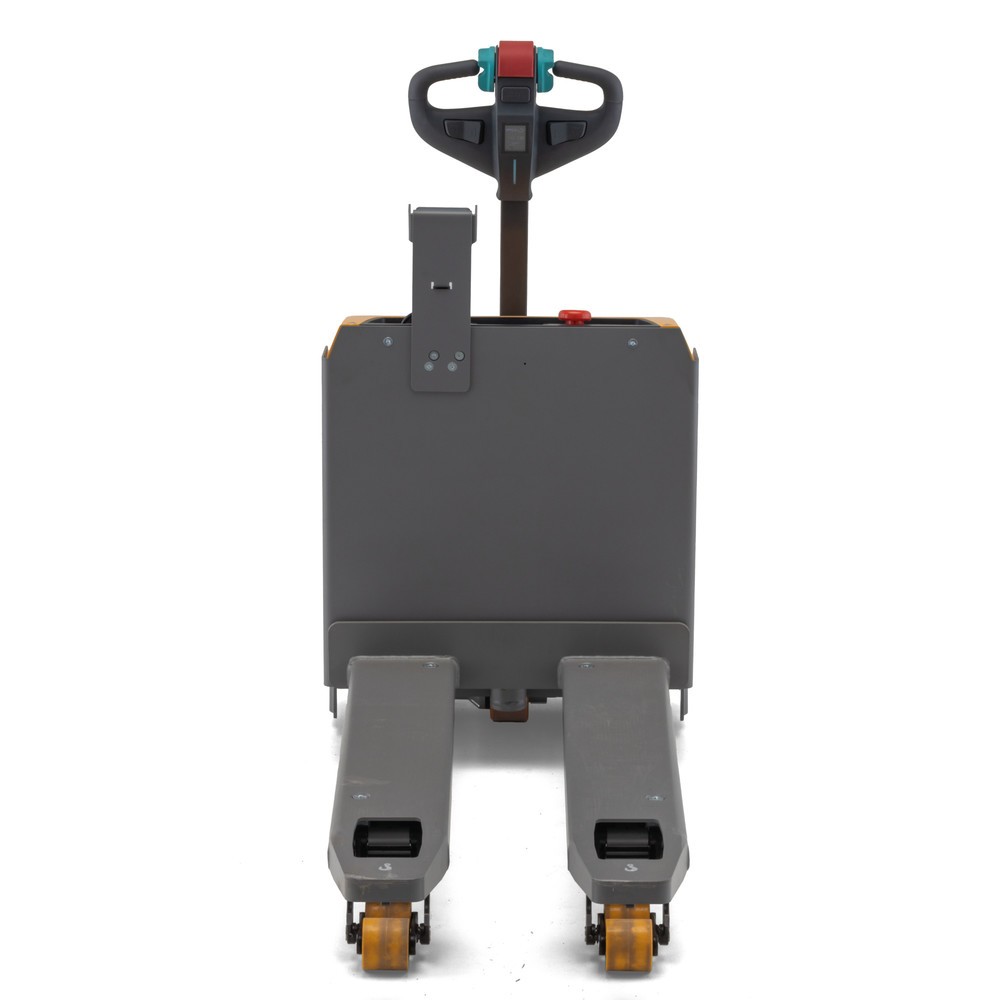

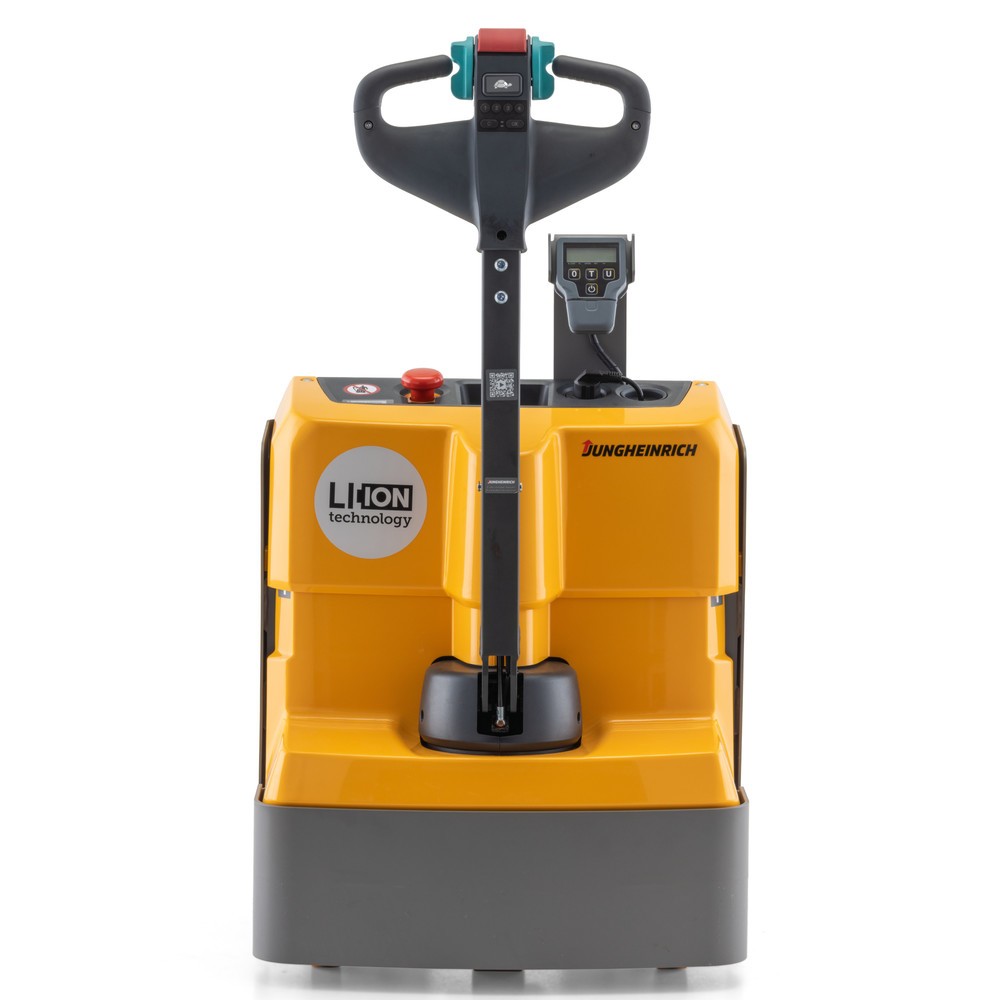

Jungheinrich EJE M13 electric pallet truck with scales, capacity 1,300 kg, lithium-ion
Jungheinrich EJE M13 electric pallet truck with scales, capacity 1,300 kg, lithium-ion
Quantity
-
Detail
Access system PIN-Code Additional wheel width 40 mm Aisle width 1863 mm Automatic shut-off without insert 30 min Battery capacity 50 Ah/per unit Battery charging time 2 h Battery type Lithium-ion Battery voltage 24 V/per unit Battery weight 15 kg Brake electric Brand Jungheinrich Capacity 1300 kg Charger integrated Chassis surface powder-coated Colour chassis Jungheinrich yellow Creep speed button Yes Digit unit 1 kg display steps Display LCD Drive electric Drive control type BLDC brushless DC Drive motor power 1 kW Drive wheel diameter front 210 mm Drive wheel material Thermoplastic elastomers based on urethane (TPU) Drive wheel width front 70 mm Face of forks length 455 mm Fork height 60 mm Fork length 1150 mm Fork roller diameter 80 mm Fork roller material Polyurethane (PU) Fork roller width 70 mm Fork support width 550 mm Fork width 182 mm Ground clearance 35 mm Hour meter Yes Hydraulic oil quantity 1 l Hydraulic oil type Mineral oil Hydraulic oil viscosity acc. to ISO-VG 46 Infeed rollers Yes Lift 120 mm Lift motor output 1.2 kW Lift range 90 - 210 mm Lift speed with/without load 0,05 / 0,06 m/s Load centre 600 mm Lowering speed with/without load 0,04 / 0,02 m/s Measuring tolerance 1 % Model Jungheinrich EJE M13 with weighing scale Net weight incl. battery 224 kg No. of batteries 1 Noise level as per EN 12053 (operator's ear) 64 dB(A) Operating hours per year 800 h Operator type Pedestrian Overall length 1605 mm Overall width 650 mm Route Short distance Scope Indoor, Outdoor Section Performance Spare wheel diameter 80 mm Gradeability with/without load 6 / 16 % Temperature range 0 - 40 °C Tiller RAL colour RAL 7016 anthracite grey Tiller height 740 - 1190 mm Tiller surface powder-coated Travel speed, laden/unladen 5 km/h Turning radius 1357 mm Weigher Yes Weighing range 0-1300 kg Zero adjustment via keyboard Yes quality seal LI-ION technology -
